How to Measure for Kitchen Cabinets

Remodeling tips

Making sure that your cabinet measurements are accurate is essential to planning your room layout. Here is a simple guide that outlines the tools you’ll need, step-by-step cabinet measurement instructions and some important tips.

Measuring Your Space Provides Context

While most designers will field measure your site at some point, having rough dimensions and images available for the initial meetings are helpful in determining the overall scope of the project.

Supplies You’ll Need

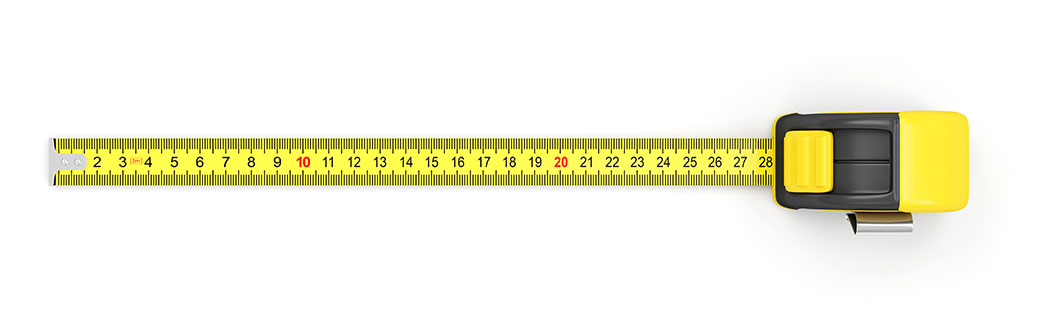

  • A 16’-25’ long tape measure
  • Pad of paper, preferably grid paper
  • Pencil or pen, and another writing instrument in another color or a highlighter
  • Having a helper is ideal, but one person needs to be consistently determining and recording the measurements

Measuring Your Space Step-by-Step

  1. To begin, draw an outline of the room
  2. Measure and note the ceiling height
  3. Measure and note all wall lengths
  4. Check corner 'squareness' at the floor, base and wall cabinet levels to determine if you will have any issues during installation. To check for corner 'squareness':
    • Mark a point 3 feet out from the corner of one wall
    • Mark a point 4 feet out from the corner of the adjacent wall
    • Measure the distance between the two marked points, if the distance is 5 feet, the corner is square (If your walls are not square, don't worry, a good installer will be able to work around any issues by using shims between the cabinets and the wall)
  5. Measure and note the location of obstacles along each wall, recording their height, width and depth from outside edge to outside edge (Include doors, windows and pipe chases)
  6. Identify and note existing plumbing, electrical and lighting centerlines on all walls including:
    • Plumbing
    • Range hook-up
    • Light switches
    • Electrical outlets
    • Lighting fixtures
    • Phone jacks
    • Heating/Air vents
  7. Record the height from finished floor for items like windows, outlets, and vents
  8. Record measurements of any free-standing furniture pieces or appliances that may stay in the room
  9. Have an electrician check the electrical service panel conditions to ensure it can handle any change of appliances you may be making in the kitchen
  10. If attic or basement walls will be affected by the renovation, make sure any plumbing or venting changes are verified by a professional

Important Tips

  • Note window size & placement
  • Note locations of ventilation and duct-work on your drawing
  • Measure any items that will stay in the room and relate to your floor plan
  • Make note of any electrical details, such as switching and outlets that need to stay, or could possibly be moved
  • If you will be working around existing lighting fixtures, list their dimensions to avoid any obstruction with taller items like pantry cabinets, refrigerators or crown mouldings
  • Once your designer has measured the space, double and triple check the measurements prior to placing your order; every component order is custom and items will be made just for you
